XRay Inspection Machine for Electronic Component Inspection

Name: XRay Inspection Machine for Electronic Component Inspection
Brand: WELLMAN
Price: 24000 USD

Payment Terms : T/T

Max tube current : 200μA

Brand Name : WELLMAN

Model Number : X6000

Price : 24000-34000 USD

Focal spot size : 5μm

Delivery Time : 10 days

Max tube voltage : 90kV

Effective area : 130mm*130mm

MOQ : 1

Packaging Details : Wooden case

Certification : CE, FDA

Place of Origin : CHINA

X-ray type : Closed, microfocus

Contact Now

X-Ray Inspection Machine for Electronic Component Inspection

Wellman 60° Tiltable FPD X-Ray System for BGA Solder Void Analysis

The Wellman Microfocus X-Ray Inspection System X6000 features a maintenance-free X-ray tube system that enables efficient inspection of BGA solder voids and PCB through-holes, paired with high-precision imaging capabilities.

Key Advantages

New-generation 5-inch high-definition digital flat panel detector (FPD)
420*420mm work table supporting maximum load capacity of 15KG
Intuitive operation with only 2 hours of training required
3-axis linkage system with adjustable movement speed
Programmable inspection procedures for automated batch testing
Closed X-ray tube with over 10000 hours lifespan and maintenance free
Auto navigation window moves worktable to clicked position directly
Optional 360 degree rotary jig for multi angle inspection

Technical Specifications

X-ray Source

Type	Closed, microfocus
Max tube voltage	90kV
Max tube current	200μA
Focal spot size	5μm
Function	Auto preheat

Flat Panel Detector

Effective area	130mm*130mm
Pixel size	85μm
Resolution	1536*1536
Frame rate	20fps

Work Table

Size	420mm*420mm
Detectable area	400mm*400mm
Max load	15kg

Equipment Parameters

Magnification	Geometry 150X \| System 1500X
Inspection speed	Max 3.0s/point
Dimensions	1100mm (L) * 1000mm (W) * 1600mm (H)
Weight	1000kg
Power supply	AC110-220V 50/60HZ
Max power	1300W
Industrial PC	Intel I5 CPU, 8G RAM, 240GB SSD
Displayer	24" HDMI LCD

Safety Features

Radiation leakage	No leakage (≤1μSv/h, international standard)
Lead glass observation window	Transparent lead glass shields radiation while allowing internal observation
Window/door safety interlock	X-ray automatically powers off when window/door is opened
Electromagnetic safety switch	Locks observation window when X-ray is active
Emergency stop	Instant power-off button near operation position
Tube protection	Software prevents X-ray tube from being left on

Software Capabilities

Basic Operation

Full keyboard and mouse control for all functions, including X-ray tube activation and parameter adjustment.

Measurement Tools

Comprehensive measurement tools for distance angle radius perimeter and distance rate perfect for through hole soldering analysis.

Automated Inspection

Three modes available: manual point setting, array pattern for regular points, and automatic feature recognition to enable efficient batch processing.

Image Processing

Adjustable brightness, contrast, and gain to achieve optimal image quality. Save and retrieve inspection parameters for repeated inspections.

Voids Rate Measurement

Automatically calculates solder ball void rate, area, and circumference while identifying defects, and supports manual void marking and parameter saving for consistent results.

Application Examples

XRay Inspection Machine for Electronic Component Inspection

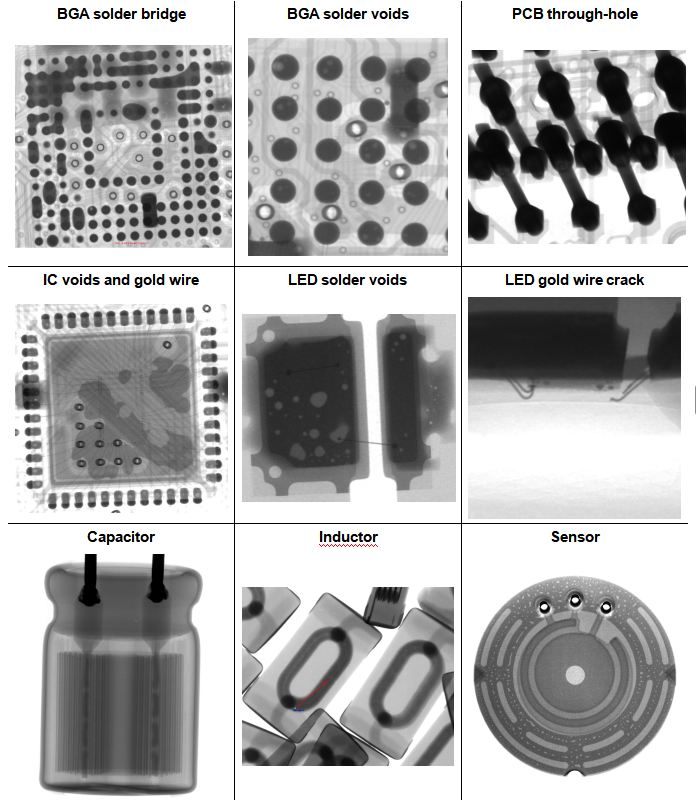

X6000 inspection application example 1

Working Principle

X6000 X-ray inspection system working principle
